Automatic bending machine
1.Electro-hydraulic servo drive
Combining high-torque servo motors with precision hydraulic valves enables fast, energy-efficient bending cycles and precise force control in servo press braking systems.
2. Extend the guide rail and even the pressure
Extra-long linear guides ensure smooth ram travel, while proportional valve technology guarantees even pressure distribution throughout the entire stroke for consistent bend quality.
3. Built-in mechanical structure
The compact, heavy-duty frame minimizes structural deformation, enhances durability, and reduces maintenance requirements - perfect for continuous CNC press braking operations.
4. Automatic bending data adjustment
Equipped with a servo-driven back gauge and angle compensation system, the machine can automatically fine-tune the bending parameters in real time, achieving an accuracy of ≤0.1° even on complex shapes.
5. Various bending capabilities
With models ranging from 3×1250mm to 25×4100mm and press forces between 350kN and 3200kN, the WMF series is suitable for both thin material and thick plate processing.
6. Fast cycle time and high throughput
With approach and return speeds of up to 265 mm/s and built-in energy recovery, the machine minimizes idle time and increases productivity in large-scale production applications.

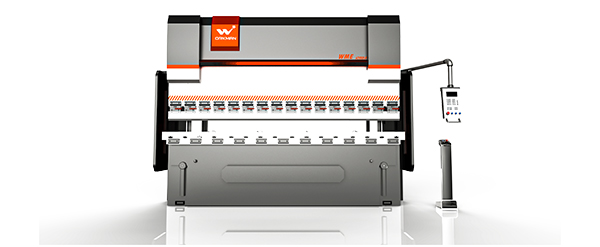

Product introduction
Wockman automatic bending machines integrate advanced servo hydraulics with CNC control to provide high-precision bending and reliable industrial performance. Designed for manufacturers seeking fast cycle times, consistent bending accuracy and long-lasting durability, the WMF series ensures efficient and stable sheet metal processing.
Key Features and Benefits
1.Electro-hydraulic servo drive
Combining high-torque servo motors with precision hydraulic valves enables fast, energy-efficient bending cycles and precise force control in servo press braking systems.
2. Extend the guide rail and even the pressure
Extra-long linear guides ensure smooth ram travel, while proportional valve technology guarantees even pressure distribution throughout the stroke for consistent bend quality.
3. Built-in mechanical structure
The compact, heavy-duty frame minimizes structural deformation, enhances durability, and reduces maintenance requirements - perfect for continuous CNC press braking operation.
4. Automatic bending data adjustment
Equipped with a servo-driven back gauge and angle compensation system, the machine can automatically fine-tune bending parameters in real time, achieving an accuracy of ≤0.1° even on complex shapes.
5. Various bending capabilities
With models ranging from 3×1250mm to 25×4100mm and press forces between 350kN and 3200kN, the WMF series is suitable for both thin material and thick plate processing.
6. Fast cycle time and high throughput
With approach and return speeds of up to 265 mm/s and built-in energy recovery, the machine minimizes idle time and increases productivity in large-scale production applications.
Technical overview
model |
WMF312 |
WMF620 |
WMF1031 |
And revealing |
WMF1132/WMF1141 |
WMF1732/WMF1741 |
And Mafakh/Mafakh41 |
WMF3232/WMF3241 |
bending force |
350 kN |
600 kN |
1000 kN |
800 kN |
1100 kN |
1700 kN |
2500 kN |
3200 kN |
working length |
1250 mm |
2000 mm |
3100 mm |
2500 mm |
3200 mm |
4100 mm |
4100 mm |
4100 mm |
Entrance depth |
1020 mm |
1720 mm |
2550 mm |
2000 mm |
2700 mm |
3600 mm |
3600 mm |
3600 mm |
| working speed | 46 mm/s |
52 mm/s |
58 mm/s |
200 mm/s |
180 mm/s |
130 mm/s |
110 mm/s |
110 mm/s |
Deformation |
≤ 395 mm |
≤ 425 mm |
≤ 500 mm |
≤ 500 mm |
≤ 500 mm |
≤ 500 mm |
≤ 500 mm |
≤ 500 mm |
CNC control |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Machine weight |
2000 kg |
3800 kg |
6600 kg |
9800 kg |
11000 kg |
13400 kg |
16000 kg |
18500 kg |
power supply |
10kVA |
16kVA |
16kVA |
26kVA |
26kVA |
26kVA |
26kVA |
26kVA |
Application areas
1. Automotive body panels and chassis
Providing the precise and repeatable bends required for large-size components such as automotive body panels, frames and structural chassis components, ensuring high dimensional accuracy and consistency in automotive manufacturing.
2. Electrical enclosures and cabinets
Consistent bend angles and clean surfaces throughout small to medium production runs make it ideal for manufacturing control panels, switchgear enclosures and a variety of cabinet designs.
3. HVAC ductwork and supports
Optimized for rapid processing, the machine ensures fast cycle times and high throughput, making it perfect for large-scale production of ducts, mounting brackets and other HVAC components.
4. Architectural metal products
Capable of producing complex bends, decorative profiles and non-standard geometries with CNC precision, it is ideal for creating custom architectural facades, decorative and interior metal elements.
